ONPOW has launched the GQ Series push button switches, which are specifically designed for high-intensity use, extreme temperatures, and harsh operating environments. The series offers a comprehensive range of anti-vandal push button switches with multiple options for sizes, functions, actuator styles, wiring methods, housing surface finishes, and illumination configurations.
GQ Series switches are available with IP65 and IP67 dustproof and waterproof protection ratings as standard, while selected models can be customised to achieve IP68 protection for enhanced resistance to dust and moisture. The series supports RGB tri-colour illumination and bi-colour illumination options. Contact configurations are available in both single-pole and double-pole versions. Two wiring options are provided: a factory pre-wired version with 300 mm lead wires, or a rear pin terminal design with a detachable socket (matching wiring harnesses available upon request), enabling quick and convenient wiring behind the panel. Both connection solutions eliminate the need to purchase wires separately or outsource wiring assembly, helping reduce workshop labour requirements and save material and production time costs.
The GQ Series features an attractive, high-quality appearance and offers multiple housing surface finishes, including natural stainless steel, anodised, nickel-plated, and gold-plated options. With stable operation, low failure rates, and broad application versatility, the series is widely used in transportation equipment, security systems, household appliances, audio-visual equipment, industrial control devices, engineering machinery, household maintenance equipment, and many other industries.
Anti-Vandal Pushbuttons: 12mm Cutout

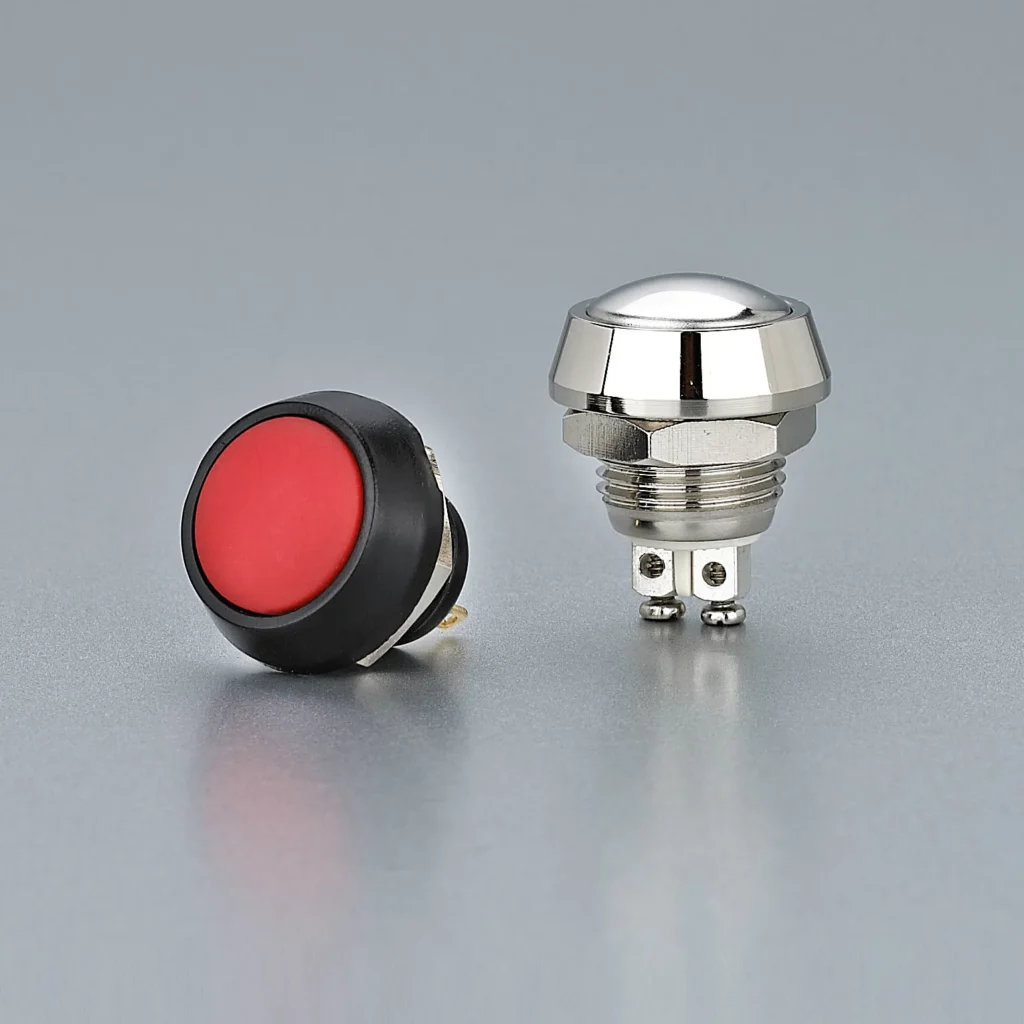

GQ12 Series
Panel Cutout Dimension Φ12，Ui:125V，Ith:3A
A variety of highly
Colorful buttons，recognisable housings
Short body, suitable for various wiring scenarios
Mechanical Life: 1,000,000 Cycles
IP65(IP67 made to order )
Certificate: CCC/CE

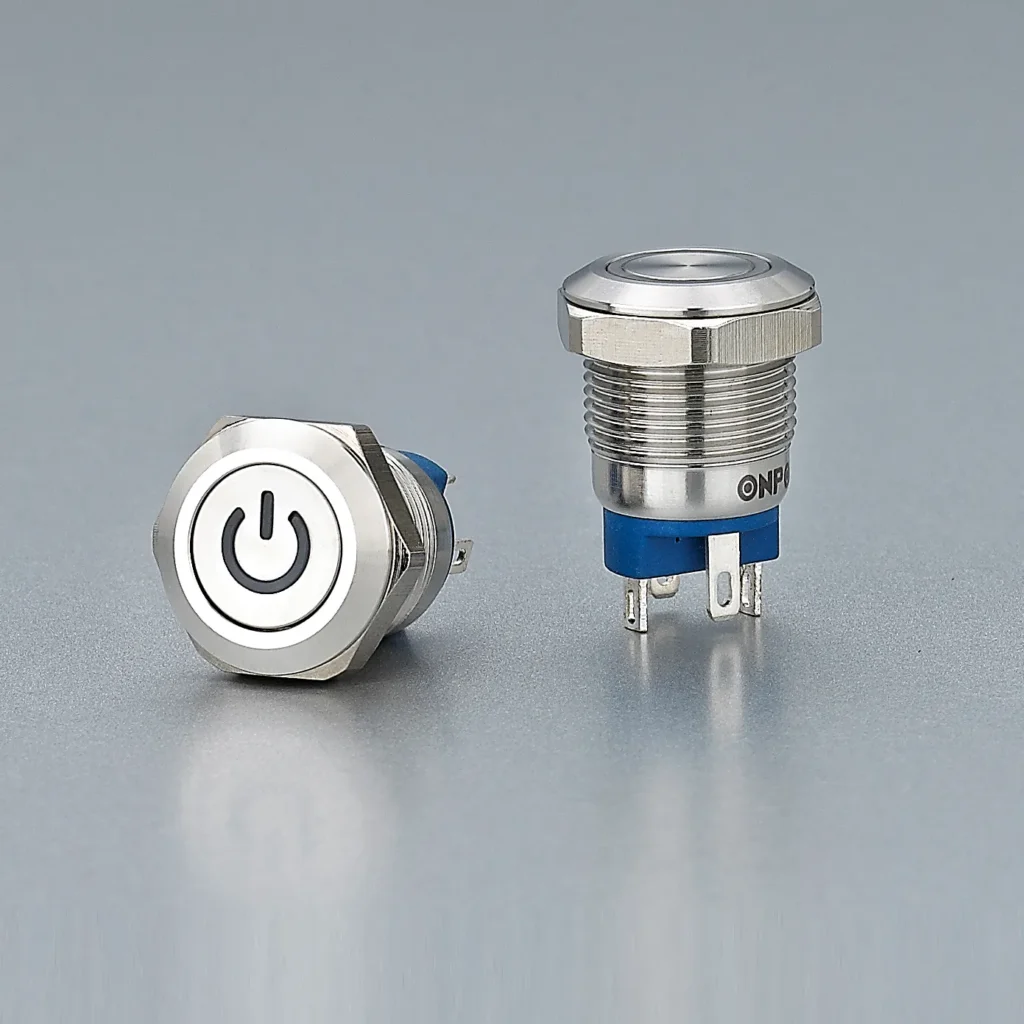

GQ12-A Series
Panel Cutout Dimension Φ12，DC36V/2A
RGB illumination, more customisation options
High flat design for easy triggering
Mechanical Life: 500,000 Cycles
IP65(IP67 made to order )
Certificate: CE
Anti-Vandal Pushbuttons: 16mm Cutout

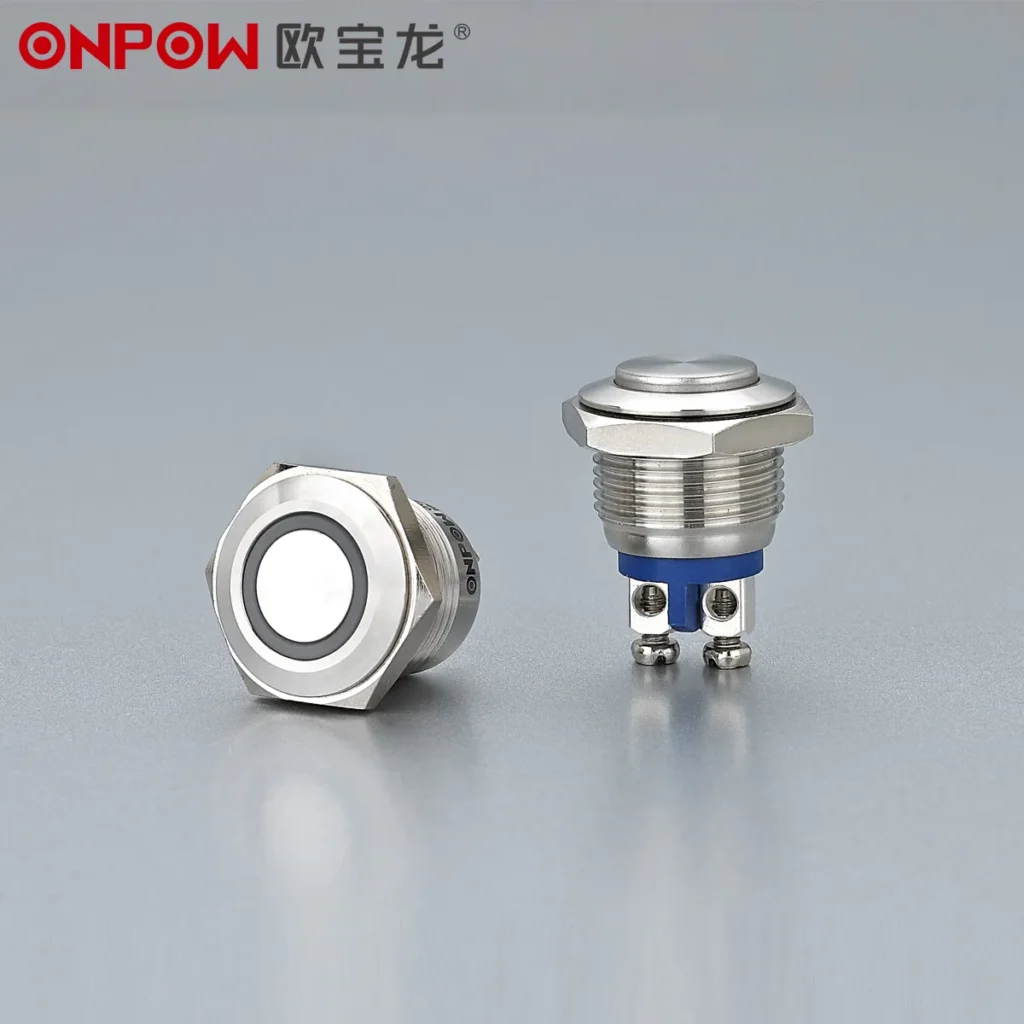

GQ16 Series
Panel Cutout Dimension Φ16，Ui:250V，Ith:3A
Complete configuration, support tri-color LED
Short body, suitable for various wiring scenarios
Common styles, screw/pin available
Mechanical Life: 1,000,000 Cycles
IP65(IP67 made to order ),IK08
Certificate: CCC/CE/UL
Anti-Vandal Pushbuttons: 19mm Cutout

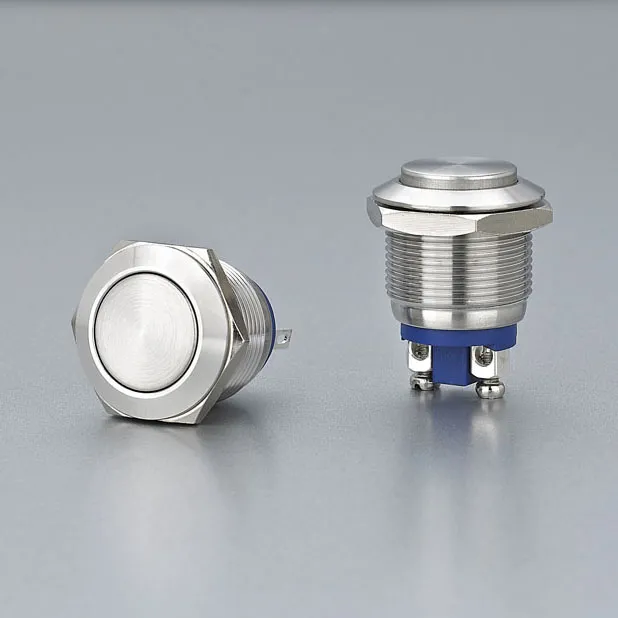

GQ19 Series
Panel Cutout Dimension Φ19，Ui:250V，Ith:5A
Short body, suitable for various wiring scenarios
Supports solder or screw wiring
Multiple head options available
Mechanical Life: 1,000,000 Cycles
IP65,IK06
Certificate: CCC/CE
Anti-Vandal Pushbuttons: 22mm Cutout

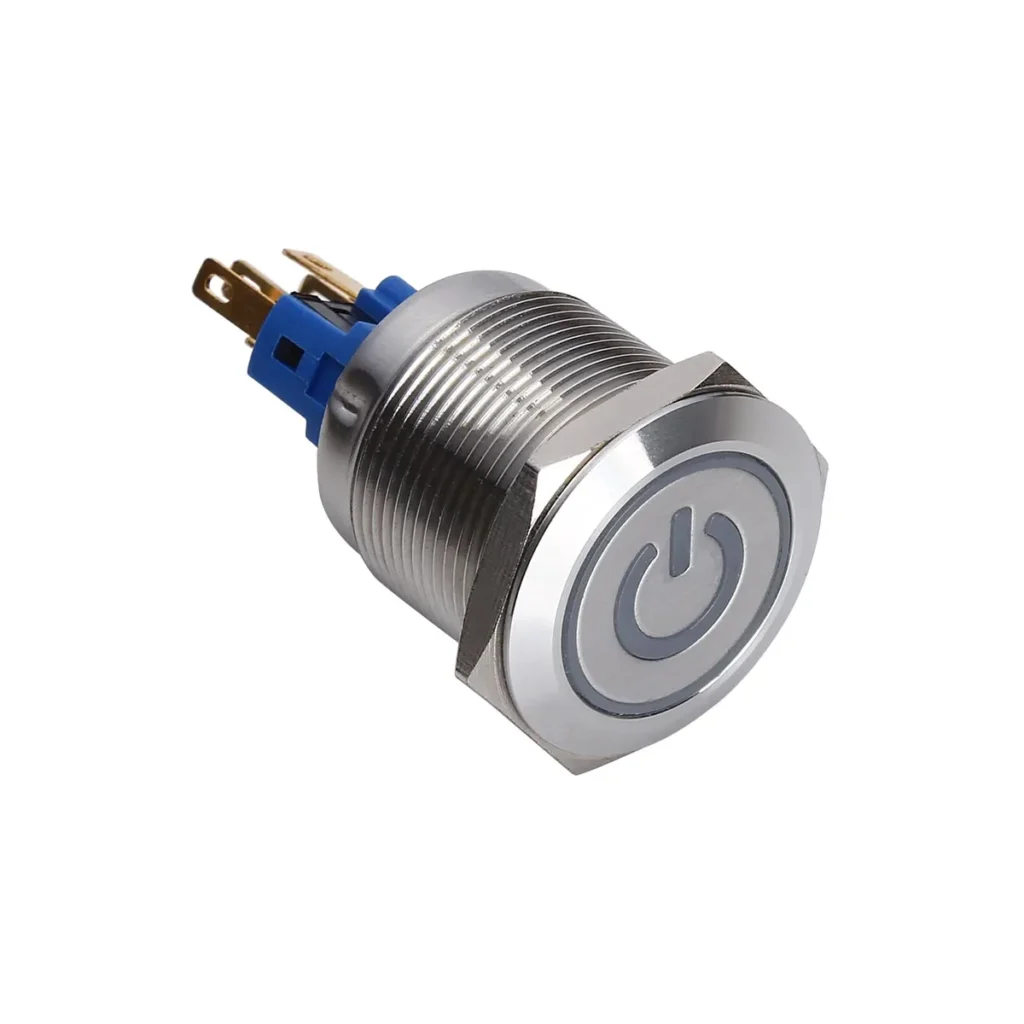

GQ22 Series
Panel Cutout Dimension Φ22，Ui:250V，Ith:5A
Classic appearance, Stable performance
Complete configuration, support tri-color LED
Latching type for gear self-locking structure to improve stability
Mechanical life: ≥1,000,000 cycles
IP65(IP67 made to order ) ,IK10
Certificate: CCC/CE
Anti-Vandal Pushbuttons: 25mm Cutout

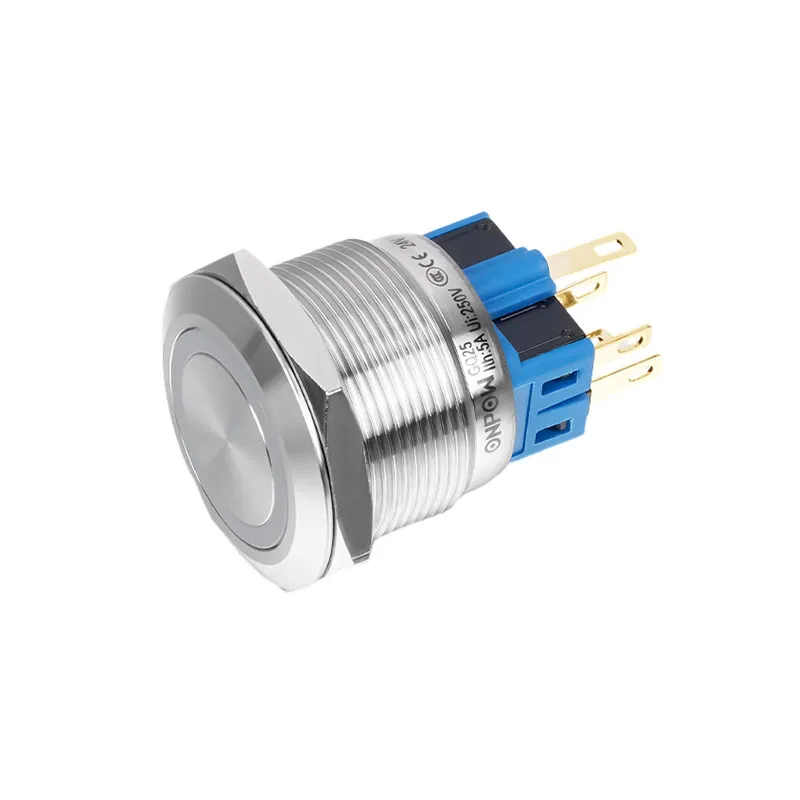

GQ25 Series
Panel Cutout Dimension Φ25，Ui:250V，Ith:5A
Bigger buttons for more functions, eye-catching appearance and simple triggering
Supports up to dual circuit control
Latching type for gear self-locking structure to improve stability
Mechanical life: ≥1,000,000 cycles
IP65(IP67 made to order ) ,IK10
Certificate: CCC/CE
Anti-Vandal Pushbuttons: 30mm Cutout

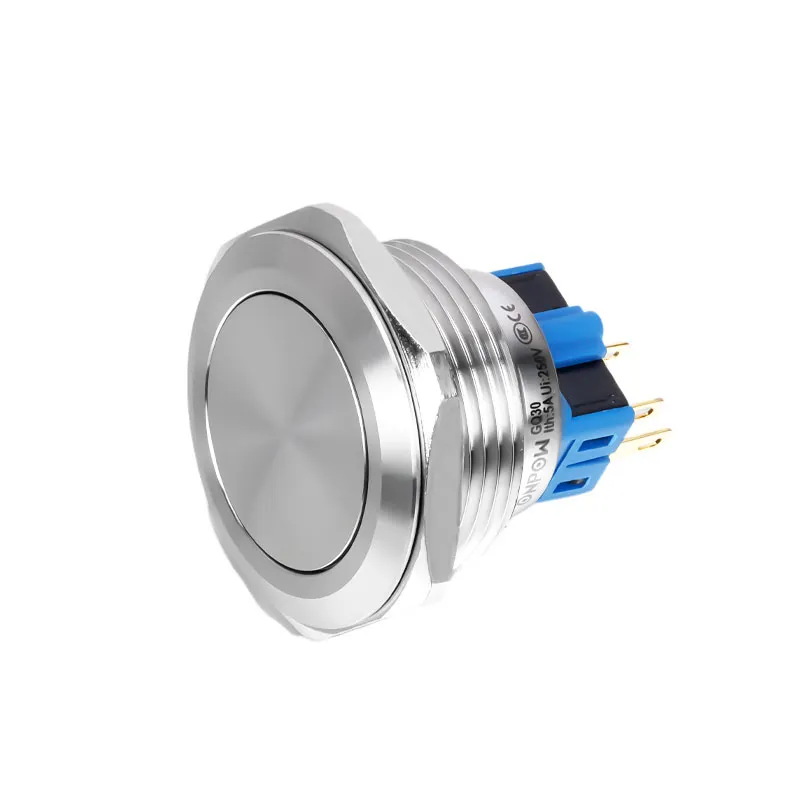

GQ30 Series
Panel Cutout Dimension Φ30，Ui:250V，Ith:5A
Bigger buttons for more functions, eye-catching appearance and simple triggering
Supports up to dual circuit control
Latching type for gear self-locking structure to improve stability
Mechanical life: ≥1,000,000 cycles
IP65(IP6 made to order ) ,IK10
Certificate: CCC/CE
Anti-Vandal Pushbuttons: 40mm Cutout

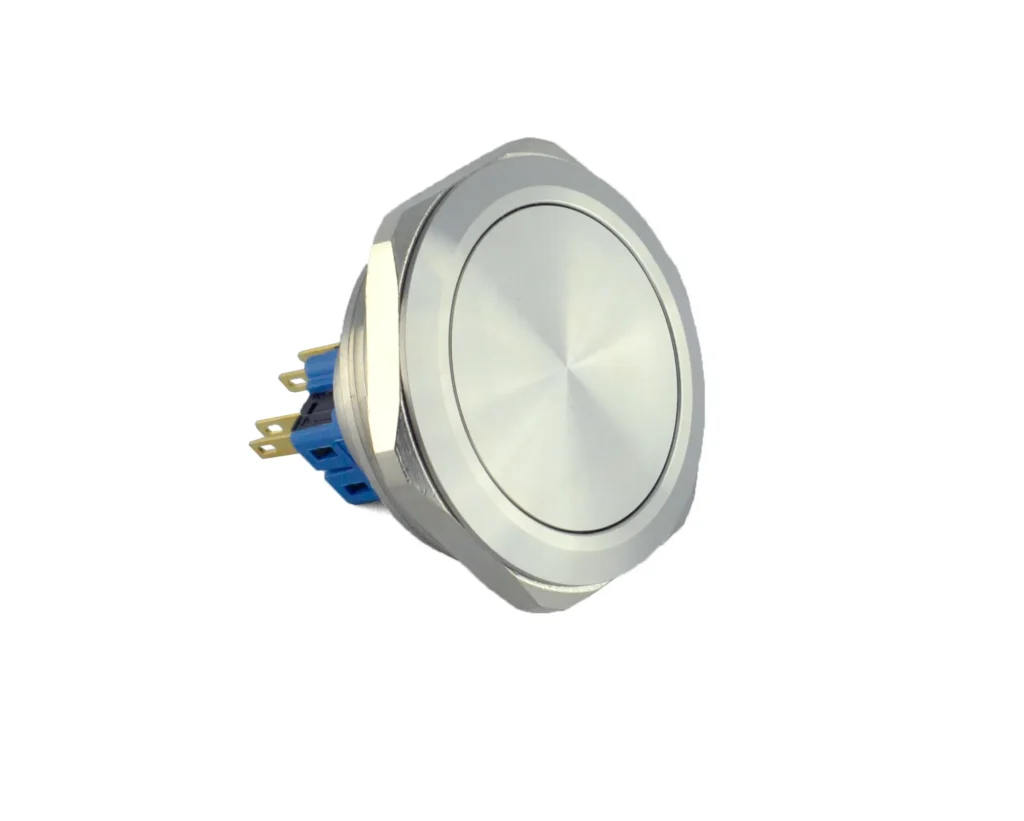

GQ40 Series
Panel Cutout Dimension Φ40，Ui:250V，Ith:5A
Bigger buttons for more functions, eye-catching appearance and simple triggering
Supports up to dual circuit control
Latching type for gear self-locking structure to improve stability
Mechanical life: ≥1,000,000 cycles
IP65(IP67 made to order ) ,IK10
Certificate: CCC/CE
