USB-08E-(BK)

Panel Mount Connector
  • Name: Panel Mount Connector
  • Description: USB3.0 HEAD FEMALE A / BACK FEMALE A
  • Mounting Hole Size: φ22mm
  • Installation Method: Screw-fastened panel mount
  • Shell Material: Aluminum alloy / Stainless steel (customizable) / High-strength plastic
  • Shell Color Options: have black and silver for your choose,other color can be customized.
  • Approval: CE, ROHS, REACH
  • If you have any customization needs, please contact ONPOW !

Important parameter:

1.Fixed by nut, easy to install
2.Operating Temperature: -25C~+ 55C(NO Freezing)
3.Electrical life: ≥50,000 cycles
4.Pane Cutout:φ22mm
5.Panel Thickness:l~10mm
6.Transmission Rate:30MB/s
7.Operating Humidity:45~85%RH(NO Condensation)

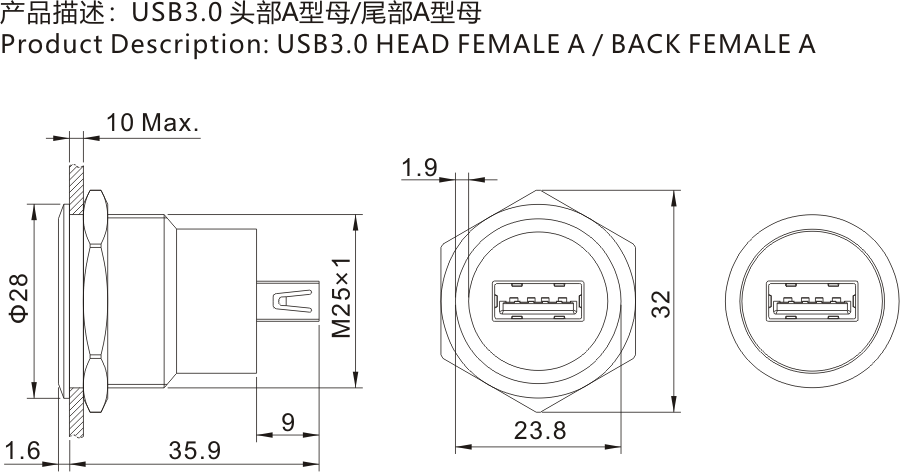

尺寸图
