USB-17-(BK)

Panel Mount Connector
  • Name: Panel Mount Connector
  • Description: USB3.1 HEAD FEMALE A / BACK MALE C
  • Wire Length: About 60cm
  • Mounting Hole Size: φ22mm
  • Installation Method: Screw-fastened panel mount
  • Shell Material: Aluminum alloy / Stainless steel (customizable) / High-strength plastic
  • Shell Color Options: have black and silver for your choose,other color can be customized.
  • Approval: CE, ROHS, REACH
  • If you have any customization needs, please contact ONPOW !

Important parameter:

1.Fixed by nut, easy to install
2.Operating Temperature: -25C~+ 55C(NO Freezing)
3.Electrical life: ≥50,000 cycles
4.Pane Cutout:φ22mm
5.Panel Thickness:l~10mm
6.Transmission Rate:30MB/s
7.Operating Humidity:45~85%RH(NO Condensation)

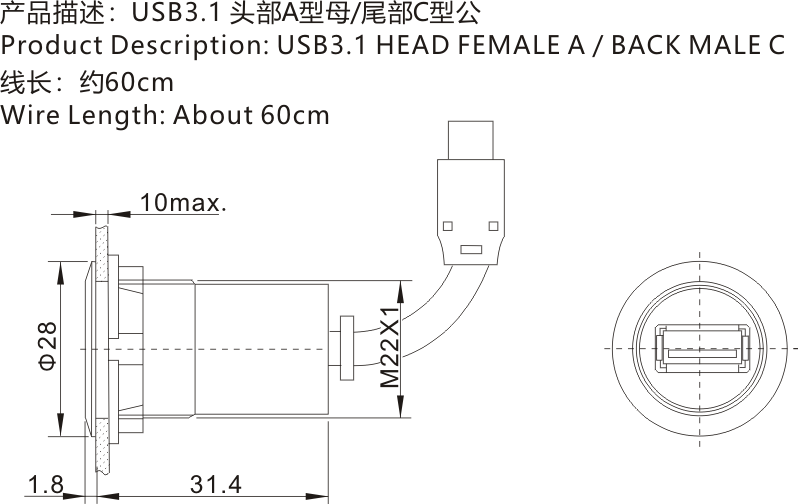

USB-17尺寸图

Customization

1. Mechanical Customization:
Connector Dimensions, Mounting Structure, Panel Cutout Size, Housing Design, Cable Length, Cable Orientation
2. Interface & Configuration:
USB Type-A, USB Type-B, USB Type-C, Micro USB, Mini USB, Connector Gender, Port Configuration, Single / Multiple Ports
3. Electrical & Performance Options:
Data Transfer Rate, Power Delivery, Current & Voltage Ratings, Pin Configuration, Shielding Options, Contact Materials
4. Protection & Durability:
IP-Rated Protection, Dust & Water Resistance, Metal / Plastic Housing, Corrosion Resistance, Operating Temperature, Mechanical Durability
Customization options vary by USB connector model. Please contact our sales team to confirm available configurations.
