When designing and selecting components for industrial control systems, the mounting size of a push button switch is one of the key specifications that should be confirmed first. In addition to electrical performance, contact configuration, terminal type, and rated voltage, selecting a switch that matches the panel cutout size can significantly improve installation efficiency while ensuring overall compatibility. Thanks to its standardized dimensions and excellent compatibility, the 22mm push button switch has become one of the most widely used mounting standards in industrial control applications.
The 22mm standard panel cutout enables quick and convenient installation while providing a stable operating feel and clear tactile feedback, making it suitable for long-term, high-frequency operation. These switches offer excellent mechanical strength and durability, allowing reliable performance in demanding industrial environments, including high and low temperatures, humidity, dust, and vibration. They are also available in a wide range of configurations, including illuminated indicators, multiple contact combinations, high IP protection ratings, wide operating voltage ranges, and long service life, providing greater flexibility for different equipment design requirements.
With outstanding versatility and reliable performance, 22mm push button switches are widely used in industrial automation equipment, control cabinets, machinery manufacturing, operator panels, control consoles, and various intelligent control systems, delivering safe, stable, and efficient operation for industrial equipment.
Complete Guide to Selecting 22mm Push Button Switches

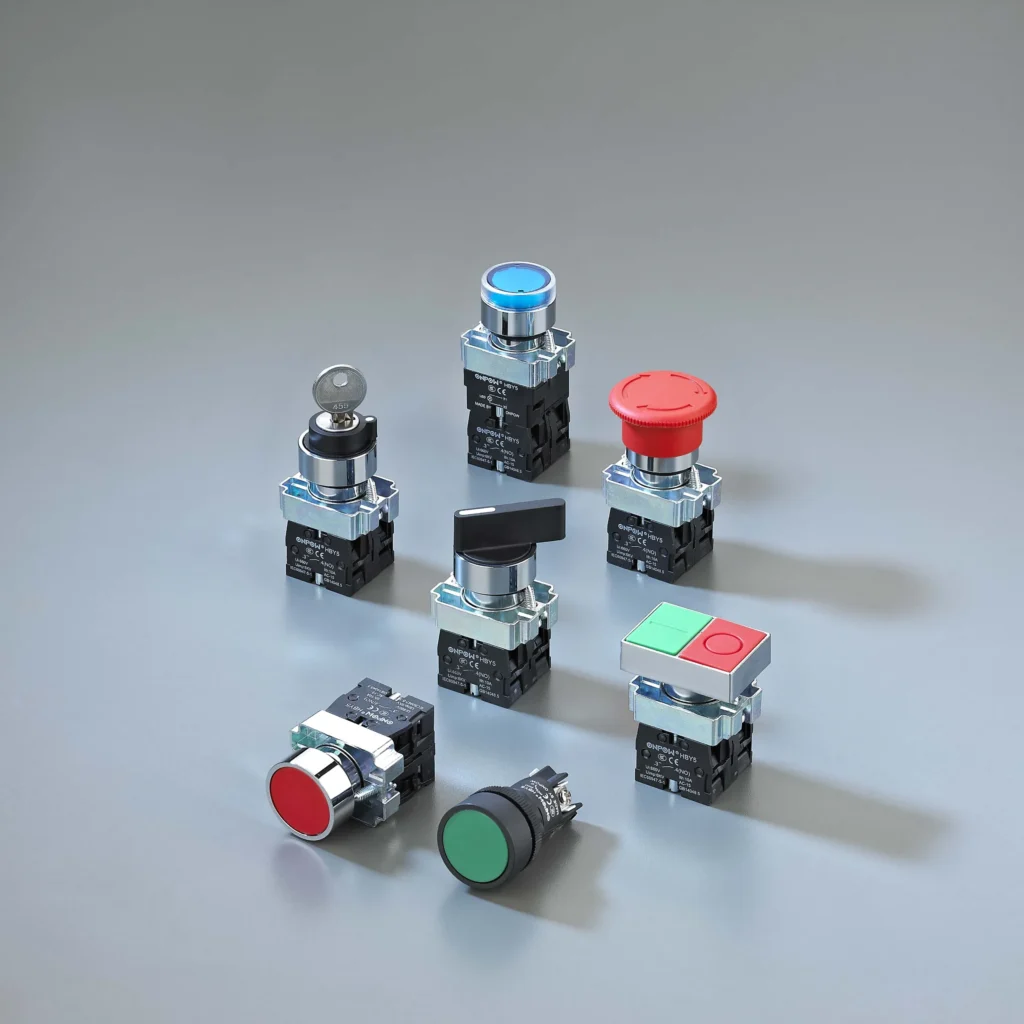

22mm Metal Push Button Switch|View Model Numbers
- Panel Cutout Dimension Φ22，Ui:250V，Ith:5A/10A/20A
- Classic appearance, Stable performance
- Complete configuration, support tri-color LED
- Latching type for gear self-locking structure to improve stability
- IP65(IP67 made to order ) ,IK10
- Certificate: CCC/CE/UL/VDE
- RoHS compliant and non-standard customization is supported.

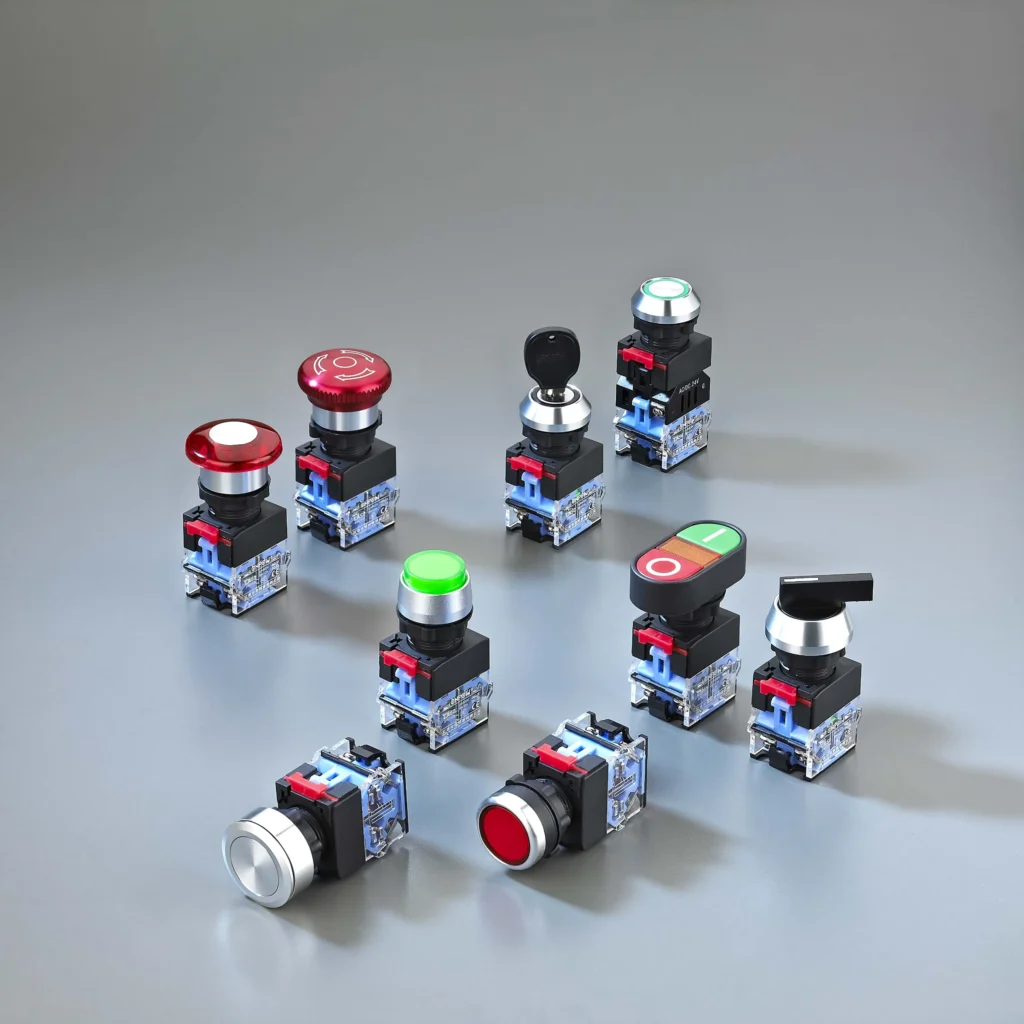

22mm Plastic Push Button Switch| View Model Numbers
- Panel Cutout Dimension Φ22，Ui:250V/500V/660V,，Ith:5A/10A
- Complete range of products
- The switch performance is stable, and the market has been tested for more than 10 years
- 1 to 8 groups of switches can be combined freely
- IP40 (IP65 made to order)
- Certificate: CCC/CE/UL/VDE

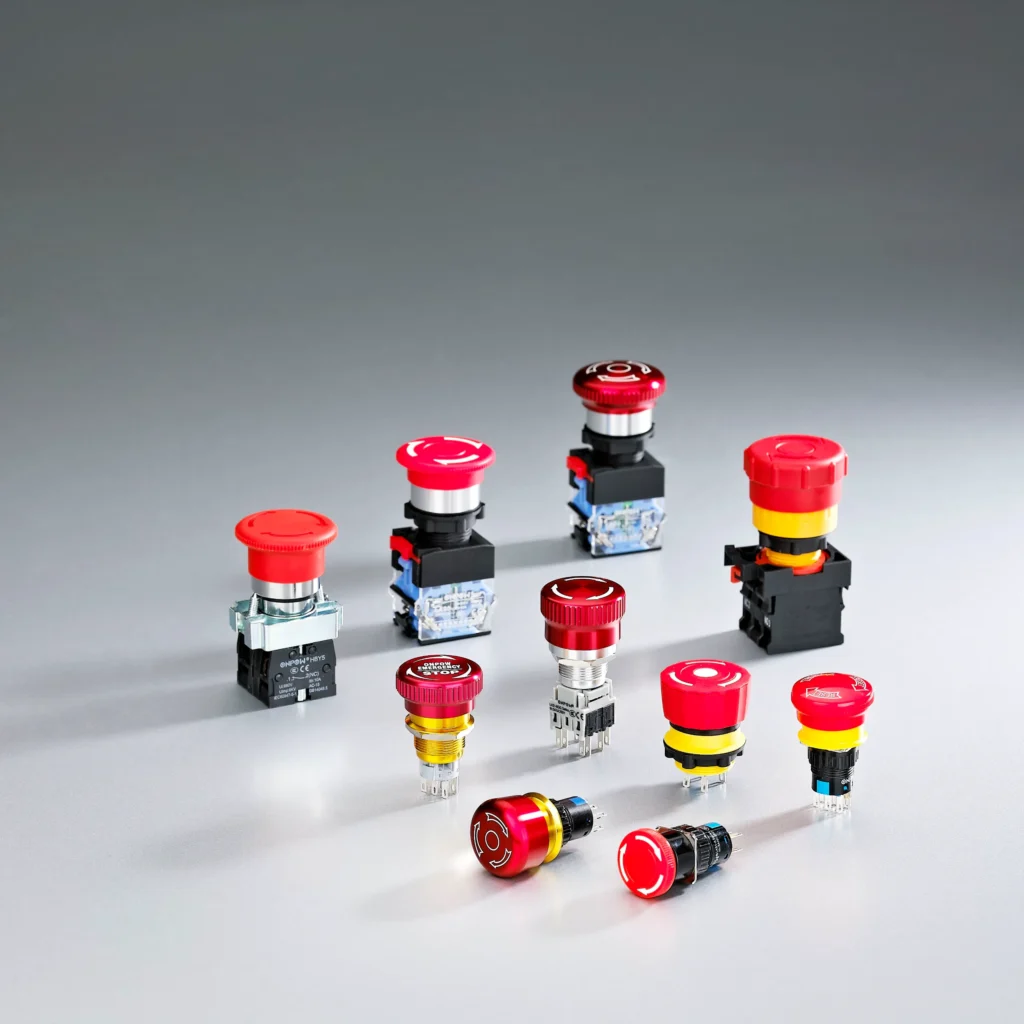

22mm Emergency Stop Button| View Model Numbers
- Panel Cutout Dimension Φ22，Ui:250V/660V，Ith:5A/10A
- The switch performance is stable, and the market has been tested for more than 10 years
- Quick release buckle
- Pull out or rotate for reset operation
- Metal and ABS head optional
- Plug-in switch holder, anti-drop and easy to install
- Certificate: CCC/CE/UL/VDE
22mm Key/Selector Switch| View Model Numbers
- Panel Cutout Dimension Φ22，Ui:250V/660V，Ith:5A/10A
- The switch performance is stable, and the market has been tested for more than 20 years
- Quick release buckle
- Anti-transformation head, firm and reliable
- 1 to 8 groups of switches can be combined freely
- Plug-in switch holder, anti-drop and easy to install
- Certificate: CCC/CE/UL/VDE

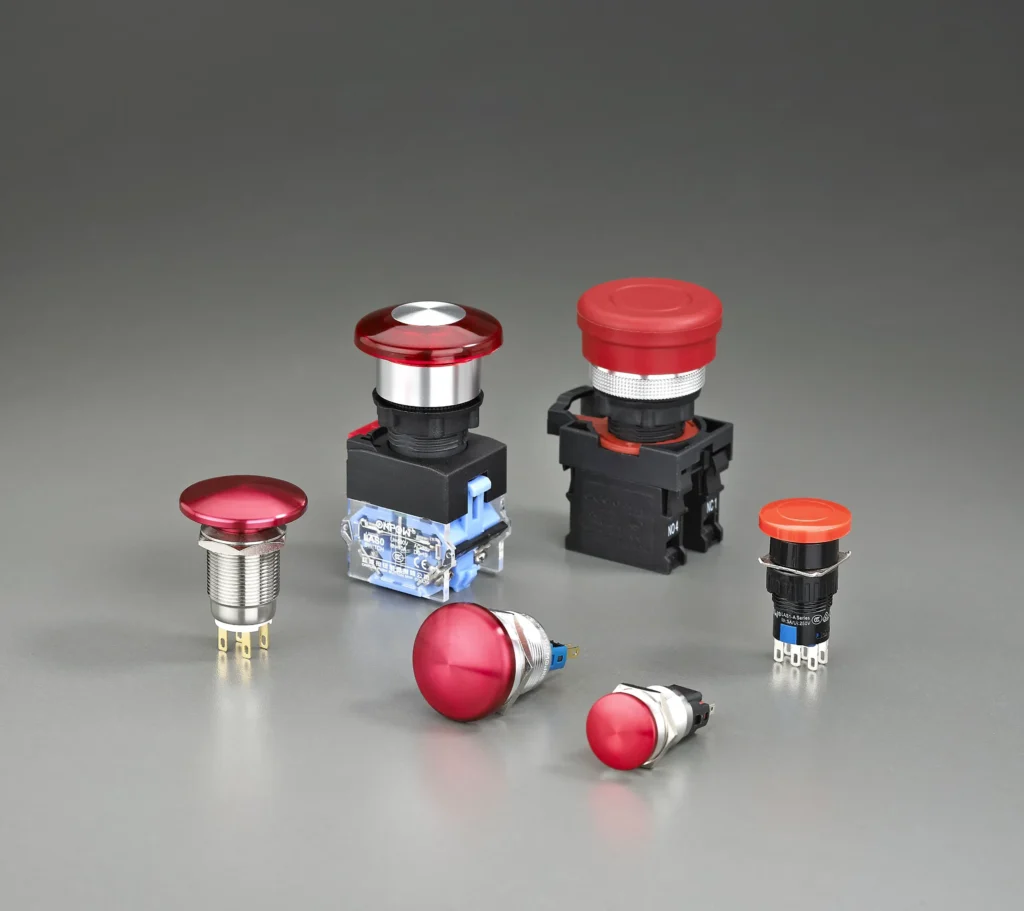

22mm Mushroom Button Switch| View Model Numbers
- Panel Cutout Dimension Φ22，Ui:250V/500V/660V，Ith:5A/10A
- Rugged aluminum alloy head button
- Plug-in switch holder, anti-drop and easy to install
- 1~8 groups of switches can be combined freely
- IP65(IP67 made to order )
- Certificate: CCC/CE

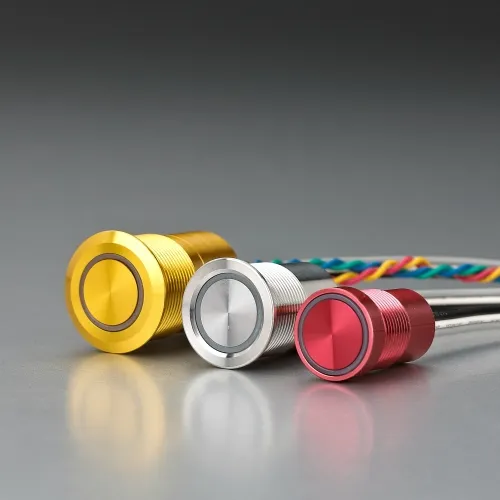

22mm Touch Switch| View Model Numbers
- Panel Cutout Dimension Φ16/19/22，24V/500mA
- Finger touch trigger (can be triggered by flowing water)
- Ultra long life (50 million cycles)
- Can be customized according to the needs of appearance
- IP68,IP69K

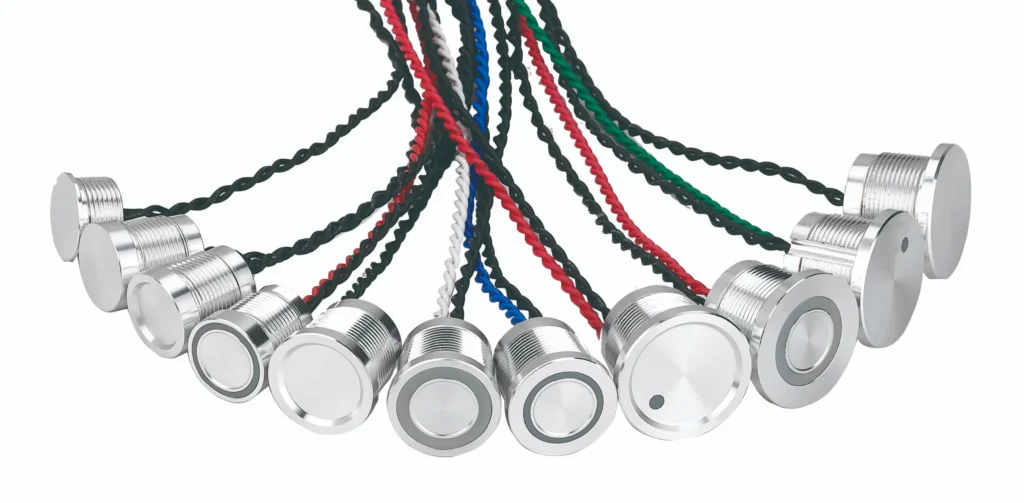

22mm Piezoelectric Switch| View Model Numbers
- Panel Cutout Dimension Φ12/16/19/22
- Triggered by pressure
- Ultra long life (50 million cycles)
- Can be used in a variety of harsh environments
- Can be customized according to the needs of appearance
- IP68, IP69K
Looking for more pushbuttons and different sizes? Use our parametric search and select “Products” to filter by the “Panel Cutout” value. Alternatively, use our request form for more assistance!
