When selecting a push button switch for a control panel or equipment interface, factors such as mounting hole size, contact configuration, terminal type, rated current, rated voltage, and functional requirements should all be taken into consideration. Among these, determining the correct panel cutout size is often the first step in the selection process. Thanks to its compact dimensions and broad compatibility, the 16mm push button switch has become one of the most widely used standard sizes for compact equipment and control systems.
Designed for applications with limited panel space, the 16mm mounting size delivers reliable control performance without compromising functionality or aesthetics. It is available in a wide range of configurations, including momentary, latching, illuminated, anti-vandal, and indicator switch versions, allowing designers to meet diverse application requirements. Many models also offer IP67 ingress protection and a long mechanical service life, ensuring dependable performance even in demanding industrial environments.
Owing to its standardized size, easy installation, and excellent compatibility, the 16mm push button switch is widely used in consumer electronics, portable instruments, human-machine interfaces (HMIs), industrial automation equipment, automotive control panels, audio and video control systems, and DIY electronic projects. It provides an ideal balance of space efficiency, durability, and modern design, making it a preferred choice for a wide range of control applications.
Related Article Links：22mm Push button Switches
16MM Push button Switch: Metal Push Button Switch
GQ16 Series： VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:3A
- Complete configuration, support tri-color LED
- Short body, suitable for various wiring scenarios
- Common styles, screw/pin available
- IP65(IP67 made to order ),IK08
- Certificate: CCC/CE/UL

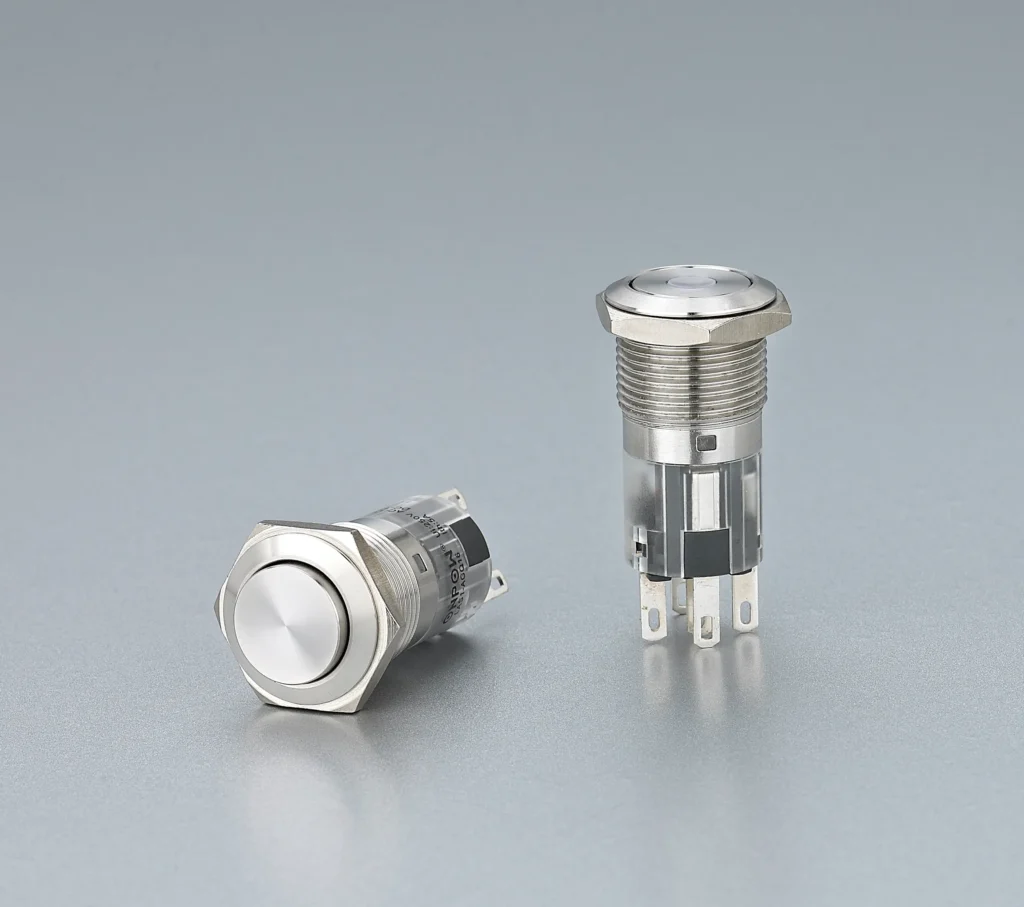

LAS1-AGQ16 Series：VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- Full range of product models to meet most installation requirements
- Supports up to dual circuit control
- Tested by the market for over 10 years
- IP40/IP65/IP67 ,IP68（customizable）,IK09
- Certificate: CCC/CE
16MM Push button Switch: Emergency Stop Options
LAS1 Series： VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- The front shape: Round/Square/Rectangular
- Multiple sets of independent switches can be configured(soldering type)
- Certificate: CCC/CE
LAS1 -A Series： VIEW DATA SHEET
- Panel Cutout Dimension D16, Ui:250V, Ith:5A
- The front shape: Round/Square/Rectangular
- Supports up to dual circuit control
- The switch performance is stable, and the market has been tested for more than 10 years
- Certificate: CCC/CE/ULDE

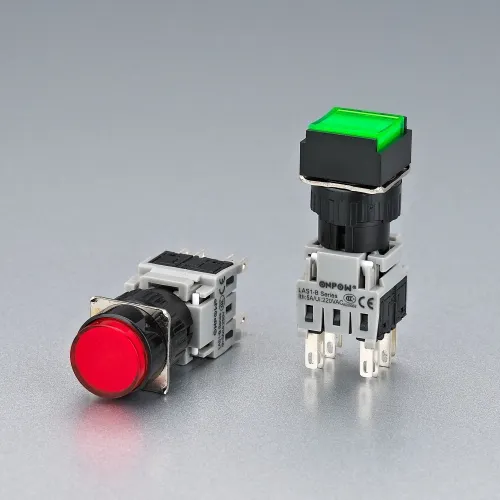

LAS1-B Series; VIEW DATA SHEET
- Panel Cutout Dimension D16, Ui:250V, Ith:5A
- Complete range of products
- Multiple sets of independent switches can be configured
- Certificate: CCC/CE
16MM Push button Switch: Emergency Stop Options

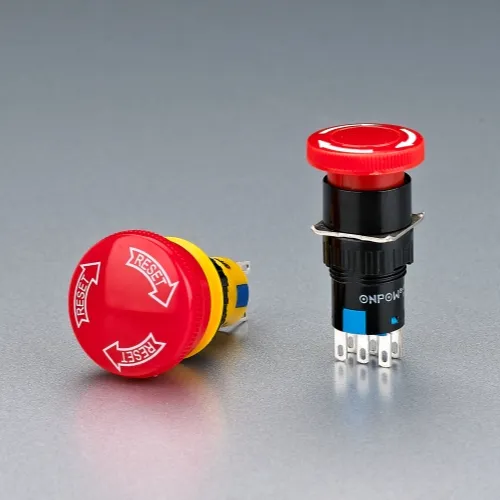

LAS1-A Series；VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- The switch performance is stable, and the market has been tested for more than 10 years
- Certificate: CCC/CE/UL/VDE

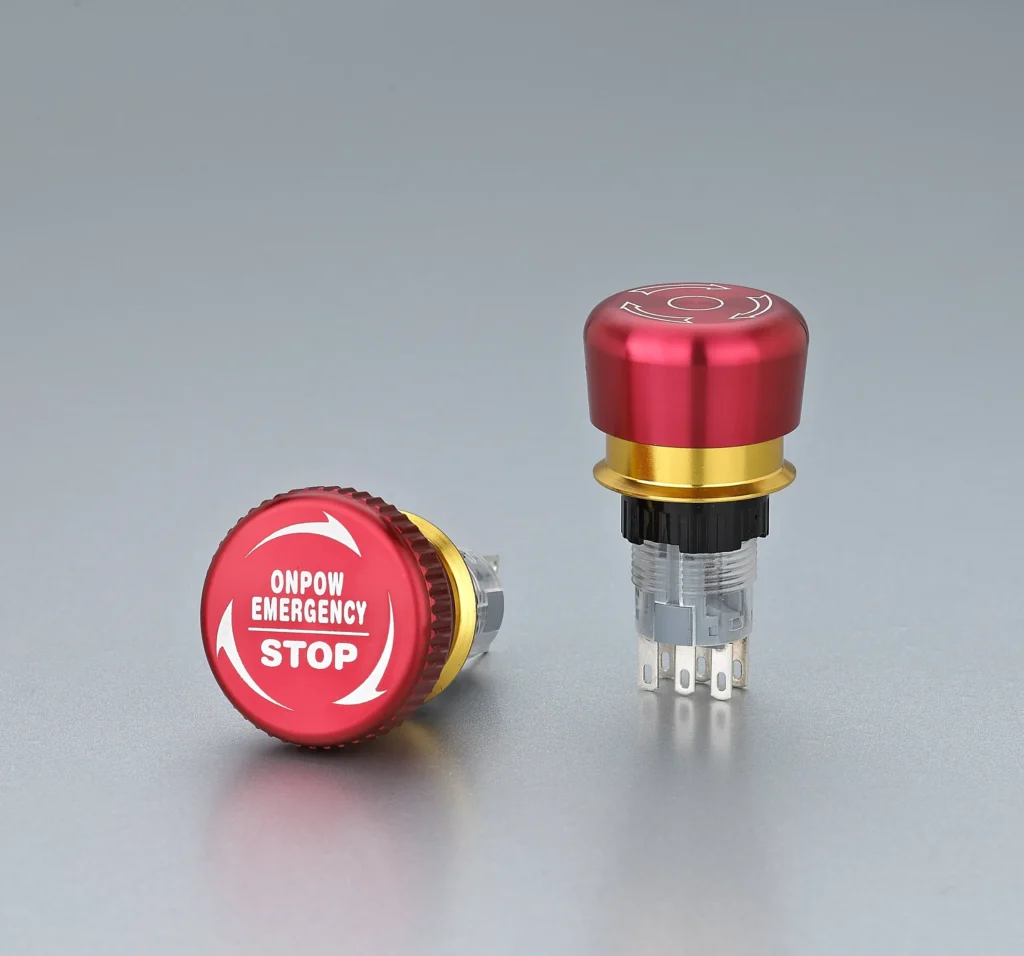

LAS1-AGQ16 Series; VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- The switch performance is stable, and the market has been tested for more than 20 years
- Certificate: CCC/CE/UL/VDE
16MM Push button Switch:Key/Selector Switch

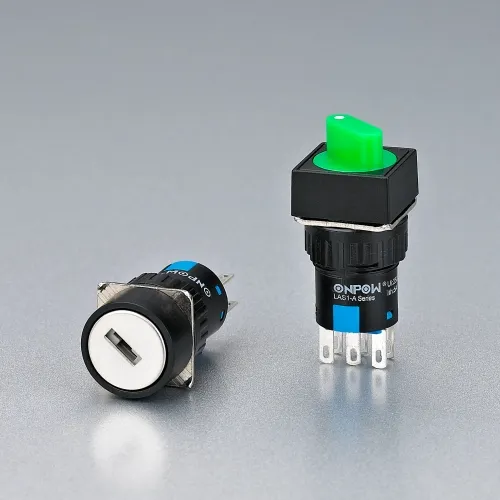

LAS1-A Series: VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- The switch performance is stable, and the market has been tested for more than 10 years
- Certificate: CCC/CE/UL/VDE

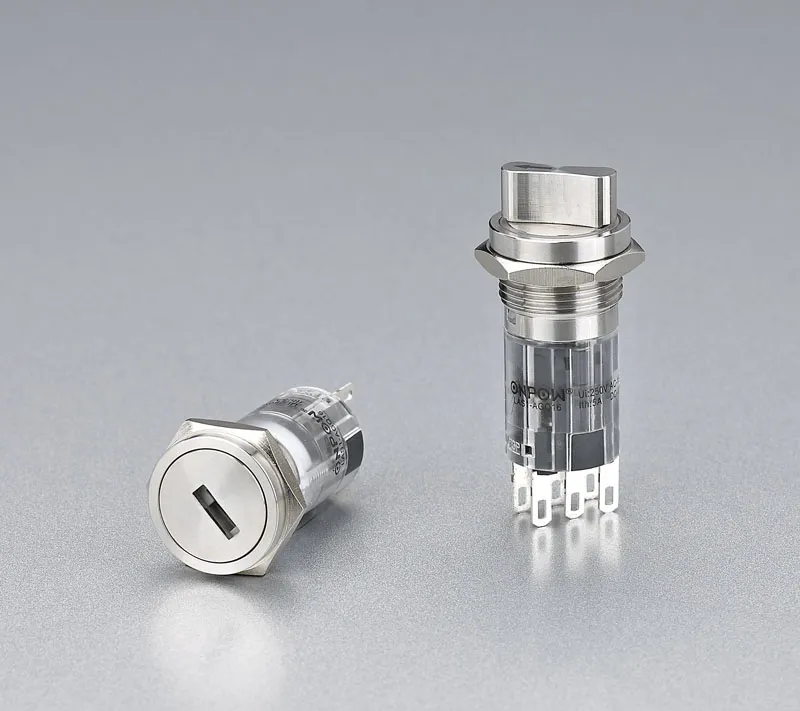

LAS1-AGQ16 Series: VIEW DATA SHEET
- Panel Cutout Dimension Φ16，Ui:250V，Ith:5A
- The switch performance is stable, and the market has been tested for more than 10 years
- Certificate: CCC/CE/UL/VDE
Looking for more push buttons and different sizes? Use our parametric search and select “Products” to filter by the “Panel Cutout” value. Alternatively, use our request form for more assistance!
