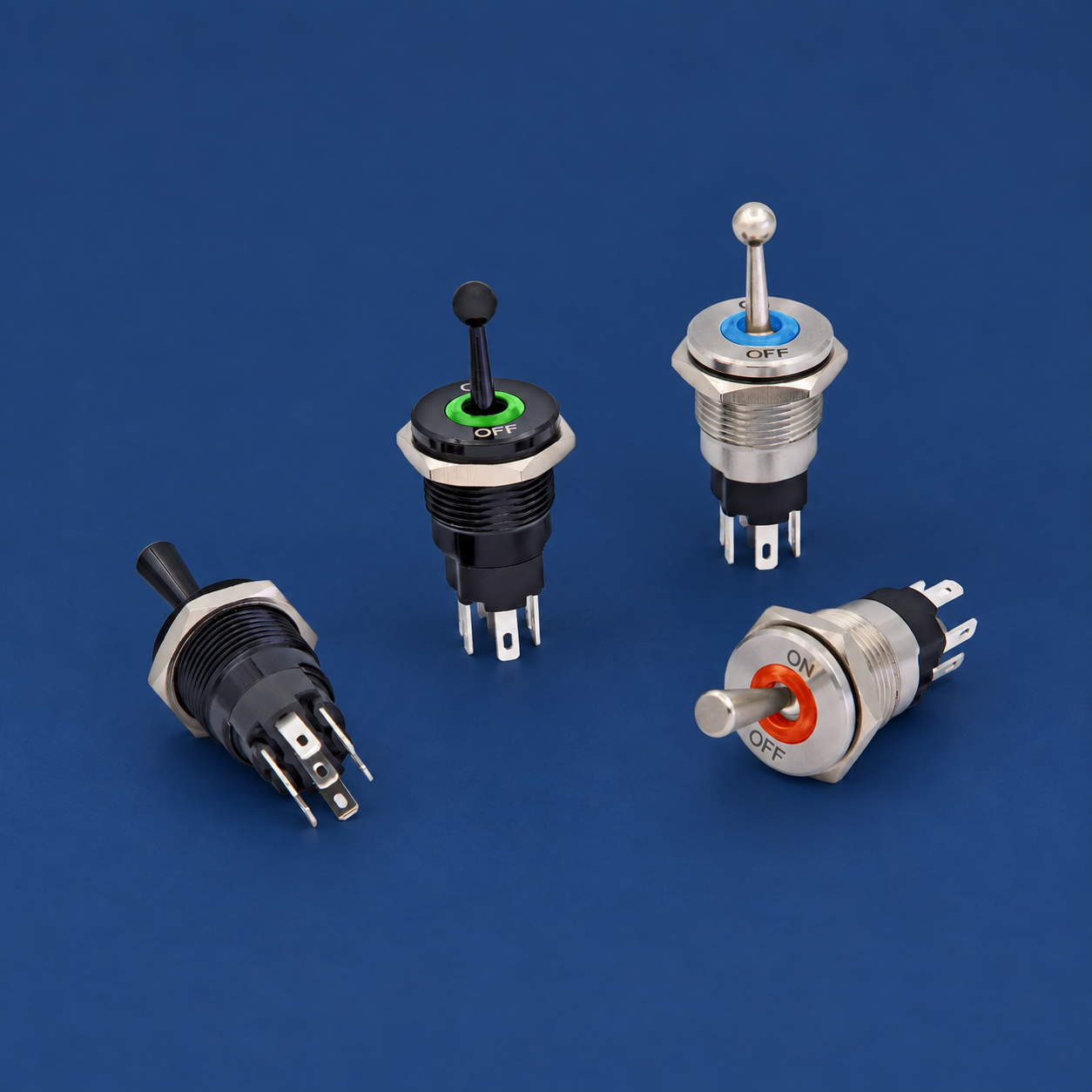

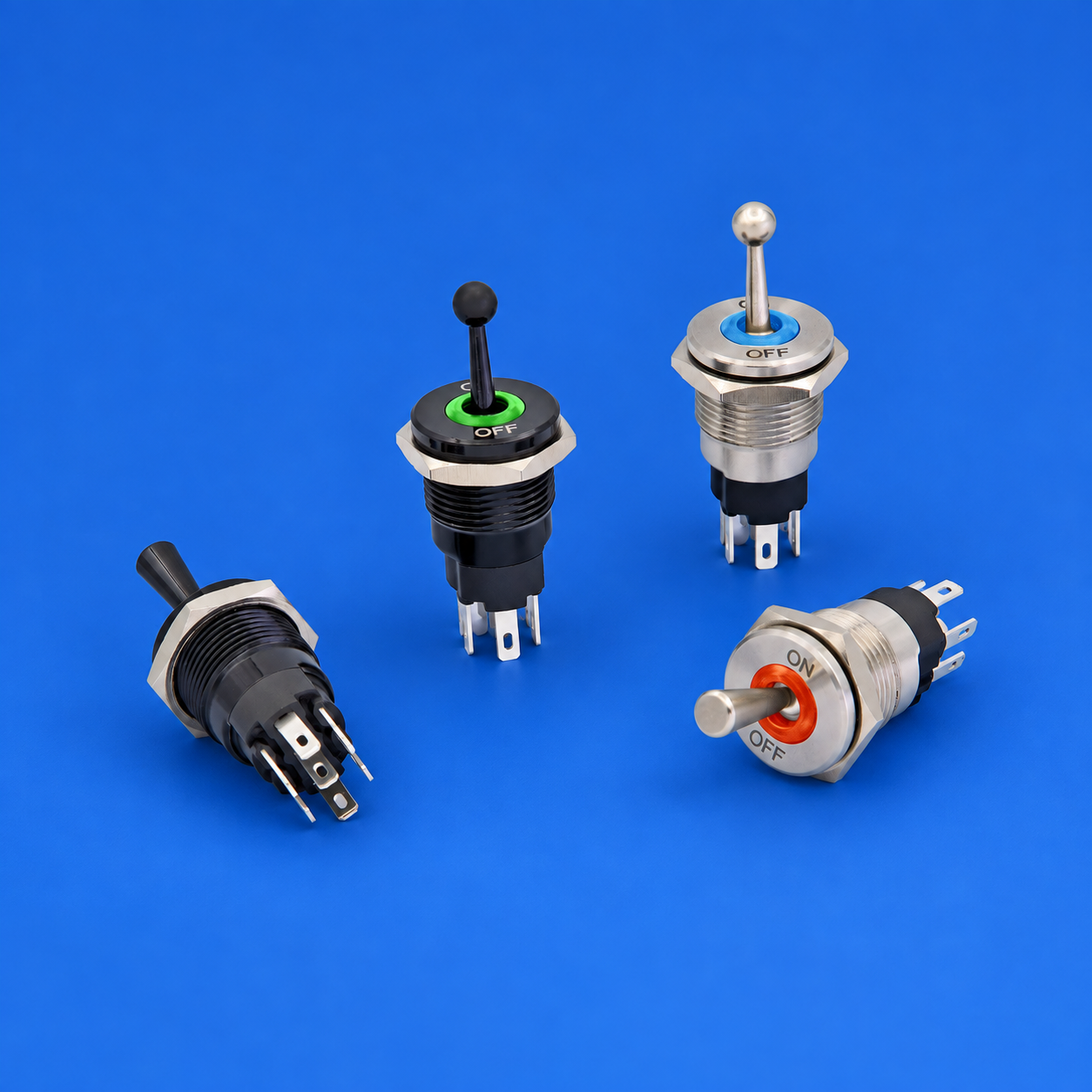

A heavy-duty panel toggle switch is selected by documented mechanical and electrical duty, not by lever size or marketing language. Review load category, inrush, DC interruption, operating cycles, sealing, impact, vibration, terminals, panel construction and the consequences of failure in the complete machine. This guide explains a safe identification and verification process for engineers, panel builders, maintenance teams and buyers. It does not replace the current datasheet, machine risk assessment or locally applicable electrical requirements. The method keeps each decision traceable during purchasing, assembly, commissioning and later service.
Quick decision
Start with function, not pin count. Write the required stable and momentary states, identify every contact and lamp circuit, then match the documented rating to the actual load. Keep power isolated during identification. After installation, test both the electrical state and the machine response. If the application controls hazardous motion, use the required safety architecture rather than treating a general-purpose switch as a complete safety function.
Selection and wiring criteria
| Decision | What to verify | Engineering reason |
|---|---|---|
| Electrical duty | Match voltage, current, frequency and load category | A large ampere number may apply only to a particular resistive AC test. |
| Inrush | Obtain startup current for lamps, motors, capacitors and power supplies | Short peaks can weld or erode contacts. |
| DC switching | Use an explicit DC rating for the system voltage | DC arcs do not cross zero naturally like AC arcs. |
| Mechanical duty | Compare operating frequency, force and endurance test conditions | A robust lever does not prove contact endurance. |
| Panel retention | Check thread engagement, nut, anti-rotation and vibration | Loose mounting changes operation and damages conductors. |
| Environmental duty | Verify ingress, temperature, shock, corrosion and chemicals | Heavy duty is not a standardized replacement for these limits. |
| Terminations | Size conductors and connection method for the actual circuit | Terminal heating and strain can limit the installed assembly. |
| Failure strategy | Use a relay, contactor or redundant architecture where consequences require it | Component rating and system safety are different decisions. |
This table is intentionally qualitative. Numerical ratings, torque, conductor size, insulation distance, endurance and environmental limits must come from the approved documents for the exact device and from the complete equipment design. Similar-looking switches can use different internal connections.
Understand the contact logic before wiring
Pole describes how many independent common contact paths operate together. Throw describes how many fixed contacts each common can select. These terms do not state the number of lever positions, whether a position is maintained or momentary, whether contacts overlap during transfer, or how an indicator lamp is connected. Those details require a position-by-position contact table.
Draw a matrix with terminals across the top and actuator positions down the side. Mark only connections supported by the current drawing or by isolated measurements. Include a clear viewing direction such as “rear terminal view with actuator up.” This simple record prevents mirrored diagrams, rotated components and harness cavity numbers from being confused during assembly or later service.
Electrical duty
What to verify: Match voltage, current, frequency and load category. A large ampere number may apply only to a particular resistive AC test. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Inrush
What to verify: Obtain startup current for lamps, motors, capacitors and power supplies. Short peaks can weld or erode contacts. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
DC switching
What to verify: Use an explicit DC rating for the system voltage. DC arcs do not cross zero naturally like AC arcs. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Mechanical duty
What to verify: Compare operating frequency, force and endurance test conditions. A robust lever does not prove contact endurance. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Panel retention
What to verify: Check thread engagement, nut, anti-rotation and vibration. Loose mounting changes operation and damages conductors. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Environmental duty
What to verify: Verify ingress, temperature, shock, corrosion and chemicals. Heavy duty is not a standardized replacement for these limits. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Terminations
What to verify: Size conductors and connection method for the actual circuit. Terminal heating and strain can limit the installed assembly. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Failure strategy
What to verify: Use a relay, contactor or redundant architecture where consequences require it. Component rating and system safety are different decisions. The engineering record should name the exact order code, drawing revision, supply, load and operating state used for the decision. Check the component in its installed orientation because panel thickness, wire routing, adjacent hardware and actuator access can change the result.
How to verify it: Compare the current manufacturer contact diagram with an isolated continuity test. Record the measured state before operation, in every maintained position and after release from every momentary position. If documentation and measurement disagree, stop and resolve the mismatch before applying power. Never infer a terminal function from pin location, metal color or a diagram for a similar-looking switch.
Safe identification and commissioning sequence
- Define the function. State what each actuator position should command, what happens on release and what the normal state must be after loss of power.
- Confirm identity. Photograph the marking and record the complete order code. Retrieve the matching current drawing rather than a family brochure.
- Isolate energy. Follow the site procedure for disconnecting and controlling hazardous energy. Prove the circuit is de-energized with appropriate equipment before touching conductors.
- Separate the component. Disconnect enough conductors to prevent parallel circuit paths from corrupting continuity measurements. Label every removed conductor.
- Map contacts. Test all terminal pairs in all positions. Repeat the sequence to detect intermittent behavior and note any spring-return action.
- Identify lamps separately. Use the published lamp diagram and voltage. Do not apply an unknown test voltage to an LED or electronic module.
- Review the load. Check normal current, inrush, AC or DC, inductive energy, switching frequency, protection and the consequence of a contact failing open or closed.
- Install mechanically. Confirm cutout, panel thickness, anti-rotation, fasteners, sealing, rear clearance, conductor support and accessible labels.
- Perform an unpowered check. Verify point-to-point wiring and insulation before energizing. Make sure unused terminals cannot contact adjacent conductive parts.
- Commission under control. Energize according to the equipment procedure, test each command and indication, then test loss and restoration of power and the credible faults identified by the risk assessment.
Load and protection boundaries
Contact ratings are conditional. A resistive laboratory load does not represent every motor, solenoid, lamp, heater, electronic power supply or capacitive input. DC interruption can sustain an arc differently from AC. Inductive loads release stored energy when opened, and cold lamps or capacitors may draw high inrush. Obtain the load data and apply only a rating that explicitly covers the intended conditions.
The switch is also not the branch-circuit protective device. Conductor size, fuse or breaker selection, short-circuit capability, grounding, insulation and enclosure protection belong to the wider equipment design. Where the operator should carry only a low-energy command, use a properly selected relay, contactor or controller input and verify the interface. Suppression components must suit the supply, load and failure behavior.
Common mistakes
- Electrical duty: A large ampere number may apply only to a particular resistive AC test. Prevent this by completing the related verification step—match voltage, current, frequency and load category—and retaining the evidence with the machine documentation.
- Inrush: Short peaks can weld or erode contacts. Prevent this by completing the related verification step—obtain startup current for lamps, motors, capacitors and power supplies—and retaining the evidence with the machine documentation.
- DC switching: DC arcs do not cross zero naturally like AC arcs. Prevent this by completing the related verification step—use an explicit dc rating for the system voltage—and retaining the evidence with the machine documentation.
- Mechanical duty: A robust lever does not prove contact endurance. Prevent this by completing the related verification step—compare operating frequency, force and endurance test conditions—and retaining the evidence with the machine documentation.
- Panel retention: Loose mounting changes operation and damages conductors. Prevent this by completing the related verification step—check thread engagement, nut, anti-rotation and vibration—and retaining the evidence with the machine documentation.
- Environmental duty: Heavy duty is not a standardized replacement for these limits. Prevent this by completing the related verification step—verify ingress, temperature, shock, corrosion and chemicals—and retaining the evidence with the machine documentation.
What to include in an RFQ
Provide the contact form, actuator positions, maintained or momentary action, center state, lamp function and voltage, supply, load category, normal and inrush current, switching frequency, panel cutout, panel thickness, rear-space limit, terminal preference, environment, ingress requirement, temperature range, vibration, required documentation, quantity and target market. Ask the supplier to return the exact contact table and dimensional drawing for the proposed order code.
Use the ONPOW industrial control product range to identify candidate families. Final selection must be based on the exact model documentation and validation in the completed assembly. For an unusual harness or control sequence, provide a terminal-view sketch and ask the supplier to mark any assumptions before samples are ordered.
Related ONPOW guides
- Toggle switch position basics
- Toggle switch and push button comparison
- Normally open and normally closed contacts
Authoritative references
- IEC 60947-5-1 control-circuit devices
- IEC 60204-1 electrical equipment of machines
- OSHA electrical safety requirements
Educational video
Electrical Basics – Switches and Contacts by HVAC School provides general background. The exact switch and equipment still require their own documentation and validation.
Frequently asked questions
Can terminal positions be identified from a photo of this toggle switch?
No. A photo can show the package and number of terminals, but it cannot reliably establish the internal contact arrangement, view orientation, lamp circuit or rating. Use the exact model drawing and an isolated test.
Does the printed ampere value apply to every load?
No. The permitted value depends on voltage, AC or DC, load category, inrush, switching frequency, temperature and the manufacturer test conditions. Select from the rating stated for the actual application.
Can a continuity tester be used to identify contacts?
Yes, when all sources are isolated and stored energy has been discharged. Test every position, recognize that lamp circuits can produce resistance readings, and compare the matrix with the manufacturer documentation.
Should the switch carry a motor or solenoid current directly?
Only when the exact load and duty are within the documented rating. For higher inrush, frequent operation or risk-sensitive machinery, an appropriately selected relay or contactor is often the better interface.
What information belongs in the final wiring record?
Record the order code, terminal-view direction, contact matrix, conductor identifiers, protective device, supply, load, labels, test results, document revisions and approval date.
Final verification rule
Approve the installation only when the exact device identity, contact matrix, lamp behavior, mechanical fit, environmental boundary, load rating, protective measures, labels and test results all agree. Resolve every discrepancy before energizing production equipment. Keep the final record with the machine so a later replacement is checked against evidence rather than appearance.
