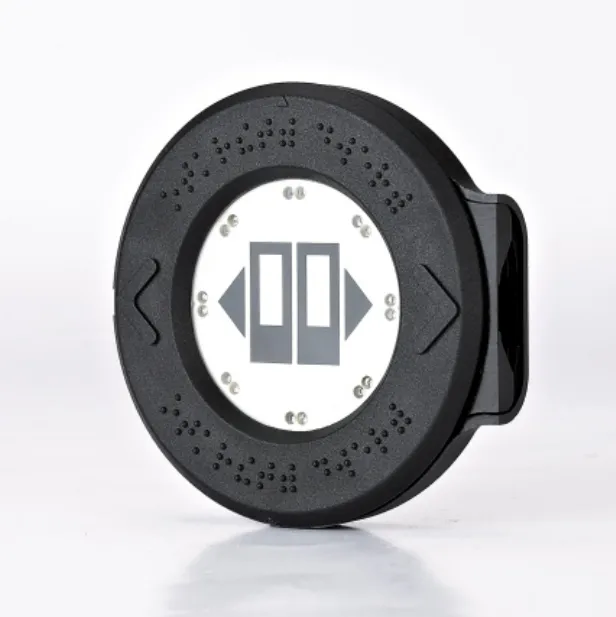

TS100 Series

Blog

Contactless, high electrical life ,Over 50 million electrical lifetimes.
TS100-1 Screw positioning installation, Unafraid of complex scenarios.
TS100-2 Adhesive mounting, No screws required.
sensor with mounting positioning slot, Ensure the patterns are oriented in the same direction.
feedback, Visual feedback through LEDs.
shock-resistant, According to GB/T 2423.55-2023 IK07 test.
100 % water & oil-proof - IP67，Sensor completely sealed in cast resin.
Accessibility, PA material outer ring can be customized with Braille (language can be customized) and arrows,25 cm² operating surface.

Jeśli masz jakiekolwiek potrzeby związane z dostosowaniem, skontaktuj się z firmą ONPOW!

Supply voltage：17~35VDC
Load current： Max. 400mA
Output： PNP-NO
Output signal;~0.5s
LED 1；TS100-1：8 LEDs(Green) / TS100-2：16 LEDs(Green)
LED 2：TS100-1：8 LEDs(Red) / TS100-2：16 LEDs(Red)
Reverse polarity protection; Protection of all lines
Overvoltage protection； Overvoltage protection
Current consumption; TS100-1-10mA / TS100-2-20mA At 24V:TS100-1 About 10 mA / TS100-2 About 20 mA
Operating temperature；-40~+60°C
Degree of protection; Front- and backside lP67, connector IP20
Type of operation； Capacitive
Operation force；No operation force required
