An IP vs IK push button switch decision starts with a simple distinction: IP is about ingress of solids and water, while IK is about external mechanical impact. The codes are independent. A high IP value does not establish impact resistance, and a high IK value does not establish sealing against dust or water. For an industrial panel, specify both only when the real environment requires both.
Part 1. Start with the two different questions
The practical question is not “which rating is higher?” It is “what can enter the interface, and what can strike it?” IP answers the first question. It is the ingress-protection code used for solids and water. IK answers the second. It classifies protection against external mechanical impact.
This distinction matters because the failure paths are different. Water or dust can enter through a sealing interface without a visible blow. A tool, trolley, boot, or accidental knock can damage an actuator even where the panel is dry. Treating one code as a shortcut for the other leaves a requirement unspoken.
| Code | What it addresses | What it does not establish |
|---|---|---|
| IP | Protection against specified solid and water ingress conditions | Impact resistance, load switching ability, or complete-machine performance |
| IK | Resistance to specified external mechanical impact | Dust/water sealing, chemical compatibility, or a final enclosure IP rating |
For this reason, a purchase specification should keep the two fields separate. It should also identify whether the requested result concerns the switch front, the assembly in a panel, or the complete enclosure. Those are not automatically the same tested object.
Part 2. Read the IP code as an exposure requirement
IP is normally written with two characteristic digits. The first relates to protection against access or solid objects, including dust at the higher end of the scale. The second relates to water exposure. The code is useful only when it is connected to a realistic exposure description.
For a push button, ask where liquid or dust reaches the interface. Is the operator side exposed to airborne dust, periodic splashing, directed cleaning, rain, or occasional immersion? Is the requirement for the front face only? Does the panel have other entries, seams, cable glands, windows, or connectors that define the finished system result?
Do not select a water digit by habit. A product intended for a dry indoor cabinet may need a different requirement from an external control station, even if both use the same actuator diameter. Likewise, a cleaning process needs the actual method, direction, duration, medium, and temperature stated in the project record. A generic phrase such as “waterproof” cannot replace those inputs.
The relevant water-exposure selection guide can help a buyer frame water conditions. It does not replace a separate IK decision or evidence for the installed panel.
Part 3. Read the IK code as an impact requirement
To evaluate impact, use the IK mechanical-impact classification rather than the IP water digit. The requested level should come from a credible scenario: routine operator contact, a tool dropped during service, equipment traffic near the panel, or intentional abuse in a public-facing location.
Geometry also changes the impact risk. A recessed button, a guarded front, a flush panel, and a proud actuator can experience a similar nearby event differently. Panel stiffness, mounting hardware, and what sits behind the button can change the finished assembly response. Therefore, write the application scenario as well as the target code.
Use an IK value for comparison only when the product, mounting state, and evidence are comparable. It should not be rewritten as a promise that an unspecified machine will survive every blow. When abuse resistance is the dominant question, use the heavy-duty selection considerations as related reading, then return to the tested component boundary.
Part 4. Define the boundary of the rated interface
The phrase “front-panel protection” deserves attention. A manufacturer may state a rating for a component’s front interface under a particular installed condition. That statement does not automatically rate the rear terminals, the enclosure door, the cable entries, or the final machine.
Before comparing quotations, capture the panel cutout diameter and tolerance, panel thickness and material, gasket or sealing arrangement, nut or fastener installation requirement, and any adjacent openings. These details determine whether the component interface is being used in the configuration for which its evidence applies.
The same boundary logic appears in real installer questions about bulkhead connectors: buyers ask whether the code seals the connector itself, the enclosure, or both after installation. The useful response is to name the boundary and seek the relevant installation instructions. Do not infer an enclosure result from a single component label.
Part 5. Turn the environment into a selection decision
Use separate evidence columns in the selection worksheet. This prevents an RFQ from claiming “IP/IK required” without telling a supplier what should be evaluated.
| Field | IP decision input | IK decision input | Procurement consequence |
|---|---|---|---|
| Exposure | Dust class, rain, splash, cleaning method | N/A | Define required ingress condition |
| Physical risk | N/A | Accidental knock, tool contact, traffic, public access | Define impact scenario |
| Boundary | Front interface, panel, enclosure, cable entry | Component or installed assembly | Request evidence for named boundary |
| Installation | Cutout, panel thickness, seal, torque | Guarding and panel stiffness | Check mounting assumptions |
| Comparison | Exact rating and test scope | Exact rating and test scope | Do not compare unlabeled claims |
At this point, decide whether both codes are needed. A protected indoor cabinet may need an ingress requirement without a severe impact requirement. A dry but exposed operator station may need the reverse emphasis. An outdoor, accessible station can require both, but the appropriate values must still come from its real exposure and risk assessment.
Part 6. Use product pages as a candidate check

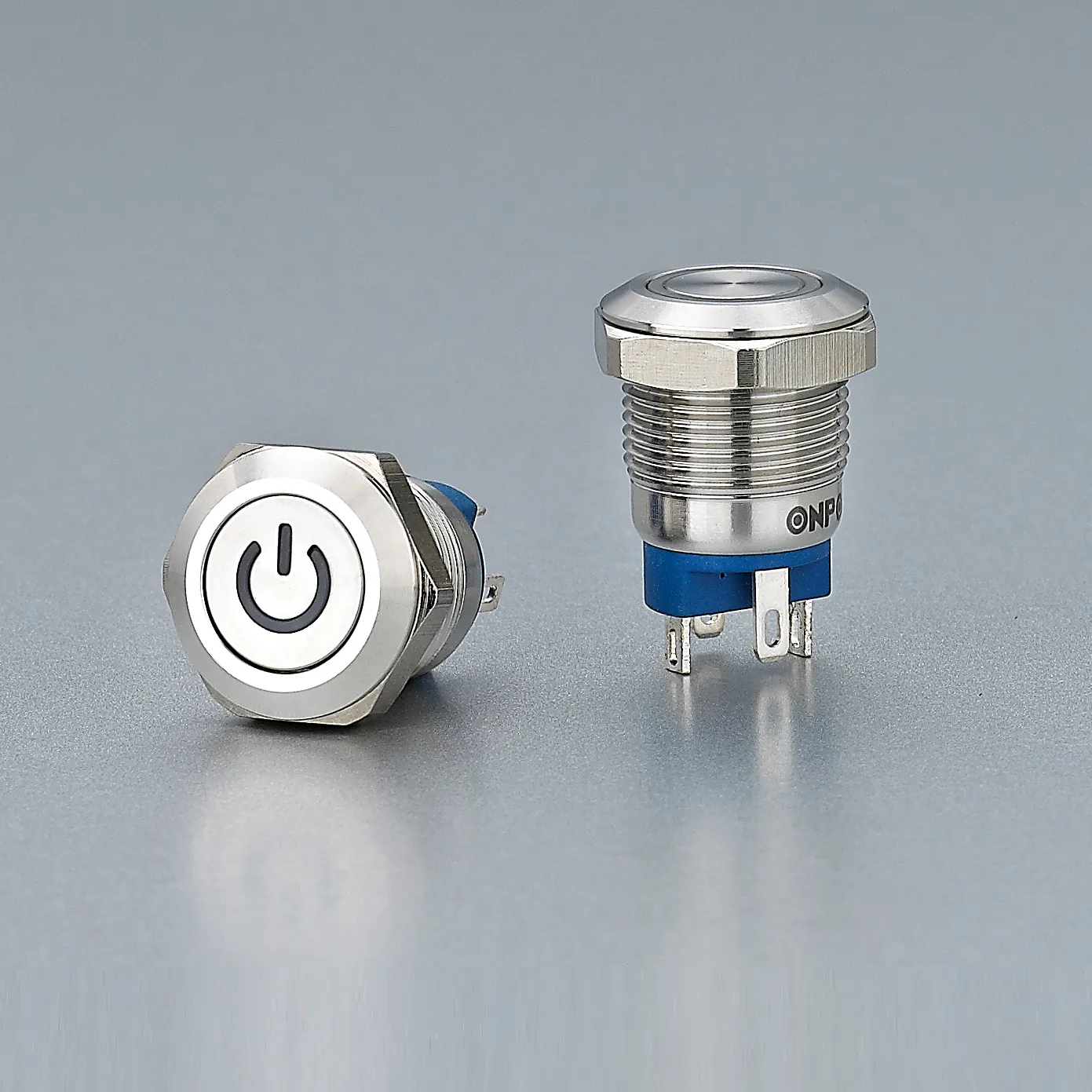

Product pages are a starting point for candidate screening, not a finished-system certificate. Review the metal push button range for available product families, then open the exact product record for the required mounting size, actuator style, contacts, terminals, illumination, and protection data.
For example, the published ONPOW GQ22-L-11E/S page lists front-panel IP65, an IP67 made-to-order option, and IK10. That is model-specific page information, not a statement about every GQ product or an installed enclosure. Ask for the current documentation for the exact configuration being quoted.
For an initial family discussion, use the GQ product hub. It lists several installation diameters and front-panel protection options, which makes it useful for narrowing a requirement. It does not remove the need to confirm the product page and the installed boundary.
Part 7. Set the fit boundary and RFQ
This approach fits buyers who can describe the environment and the interface they are building. It is not a replacement for final enclosure validation, a safety review, chemical compatibility review, or electrical load selection. If the panel construction, cleaning process, or impact event is unknown, collect those facts before assigning a code.
Include the following in an RFQ:
- model or mounting diameter, actuator form, operation mode, contact arrangement, and terminal type;
- LED requirement if illumination is needed;
- panel material, thickness, cutout dimensions, seal and fastening conditions;
- dust/water exposure and cleaning process;
- impact scenario and requested IK scope;
- requested IP scope: front interface, installed panel, or complete enclosure;
- quantity, target delivery, and documents needed for the exact model.
Send the resulting requirement to ONPOW for a model-specific review. A clear request helps the supplier confirm what the published product information covers and what must be checked for the final assembly.
FAQs
What is the main difference between IP and IK?
IP addresses ingress of solids and water. IK addresses external mechanical impact. They are separate classifications.
Does IP67 automatically mean a switch has a strong IK rating?
No. The IP code does not state mechanical impact resistance. Request a separate IK value and its scope.
Does IK10 mean a button is waterproof?
No. IK10 is an impact classification. It does not state a water or dust ingress result.
Does a front-panel IP rating cover the complete enclosure?
Not automatically. Check the manufacturer’s stated boundary and evaluate other openings, cable entries, seams, and assembly details.
Which rating matters for an outdoor push button?
Outdoor use can involve both water/dust exposure and accidental impact. Define each condition separately instead of choosing a code by location alone.
Can a cable entry change the finished enclosure rating?
Yes, it can be part of the finished enclosure boundary. Include cable entries and their installation in the enclosure review.
Is a higher rating always the better purchase?
Not necessarily. The requirement should match the environment and verified scope. An unsuitable or unverified rating adds cost without proving the needed result.
What should I ask for in a push button RFQ?
State the exact model features, the rated boundary, ingress exposure, impact scenario, panel details, quantity, and required documentation.
